Symptom

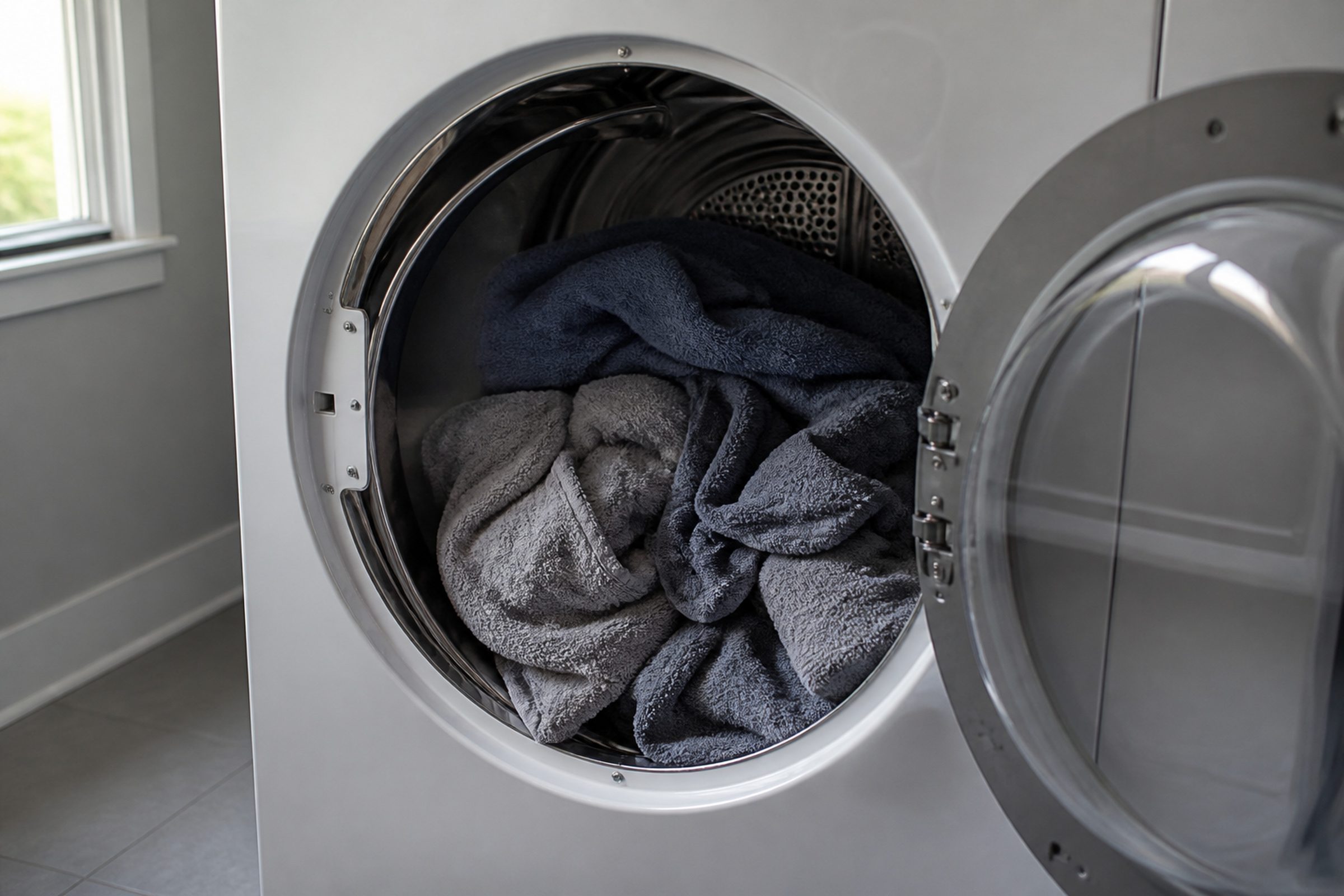

Kenmore dryer with no heat
A dryer that turns but does not heat has a short list of causes, and which list depends on whether it is gas or electric. Telling us which you have on the phone means the right parts arrive on the first visit.
- From $95 diagnostic, credited to the repair
- 59 cities and neighborhoods covered
- OEM parts available on order
- In writing the price, before anything is opened
Six ordinary causes
What this usually turns out to be
Cheapest and commonest first, which is also the order we check them in. They sit hundreds of dollars apart, and only the unit settles which one is yours.
-
Half the electrical supply is missing
Whirlpool's own codes name the house supply for this. Reset the breaker fully — off, then on.
Diagnostic visit from $95 -
The gas supply is off
On a gas machine. Check other gas appliances in the house before assuming the dryer.
Gas dryer igniter replacement from $185 -
A thermal cut-off has opened
Usually because of a restricted vent. Replacing it alone gives the repair a return date.
Dryer heating element replacement from $175 -
The heating element
On an electric dryer, and it is a straightforward part.
Dryer heating element replacement from $175 -
The igniter, flame sensor or valve coils
On a gas dryer, in that order, and they are tested rather than swapped — all three produce the same complaint.
Gas dryer igniter replacement from $185 -
The control or the thermostat
Where the heat circuit is intact and nothing is asking it to work.
Appliance control board repair from $265
In five minutes
Before you call anybody
None of it needs tools, and all of it makes the visit shorter.
-
01
Gas or electric
The most important thing you can tell us about this symptom.
-
02
Cycle the breaker fully
All the way off, then on. A partly tripped double breaker looks fine.
-
03
On a gas machine, does the stove light
It establishes whether gas is reaching the house at all.
-
04
Check the vent while you are there
Because the protection that shut the heat off opened for a reason.
How it shows up
What people describe when they call
A shortcut
Narrow it down before anybody arrives
A description of the behaviour leaves a few possible causes. A code names the subsystem before anybody opens anything, which is why it is worth photographing before it clears.
If there is no code at all
On a washer or dryer, the data plate is inside the door opening. All models
In more detail
About Kenmore dryer with no heat
Check the breaker, both halves of it
The motor in an electric dryer needs one leg of the supply and the heater needs both. Lose a leg — a double breaker tripped on one side only, which often does not look tripped at all — and the machine tumbles happily and never warms up. It is the single most common cause of this exact symptom and it is not a dryer problem at all.
What it usually means, by the company that built it
Kenmore manufactures nothing, so the same behavior points at different things depending on who made the appliance. The three digits before the period on the rating plate are what tells them apart.
- 110 Whirlpool — F4 E1 is the heater or its relays. F4 E4 and L2 are Whirlpool's codes for low or no line voltage, which they put at the house supply rather than at the dryer.
- 796 LG — Ps is LG's POWER ERROR. On a gas machine, gAS is the only gas-specific code LG publishes and it means no gas supply.
- 417 Frigidaire — No published table. Diagnosed by measurement at the appliance.
Two dryers, two shortlists
An electric dryer heats with an element and protects it with thermal cut-offs. A gas dryer heats with a burner and protects it with a flame sensor and a valve. Neither list contains the other's parts. This is why the very first question is which one you have — not to be thorough, but so that the van carries the right box.
Why we always look at the duct on a no-heat call
The thermal protection in a dryer exists to shut the heat off when air is not moving. When it has done its job, the honest repair is to restore both the protection and the airflow. Replacing the part and leaving the duct is not a repair; it is a delay.
This article is based on:
- Official manufacturer documentation
- Internal repair procedures
- Technician repair history
- Company quality standards
Before you book
Questions about Kenmore dryer with no heat
It heats for a while and then stops.
That is a protection cycling, and it is the vent almost every time.
My dryer is gas — does that change the price?
It changes the parts and it needs a licensed technician, so yes. The page for it says so before the figure.
